The JBL Synthesis® 2.5-Way Triple 8-inch In-wall Loudspeaker – SCL-2

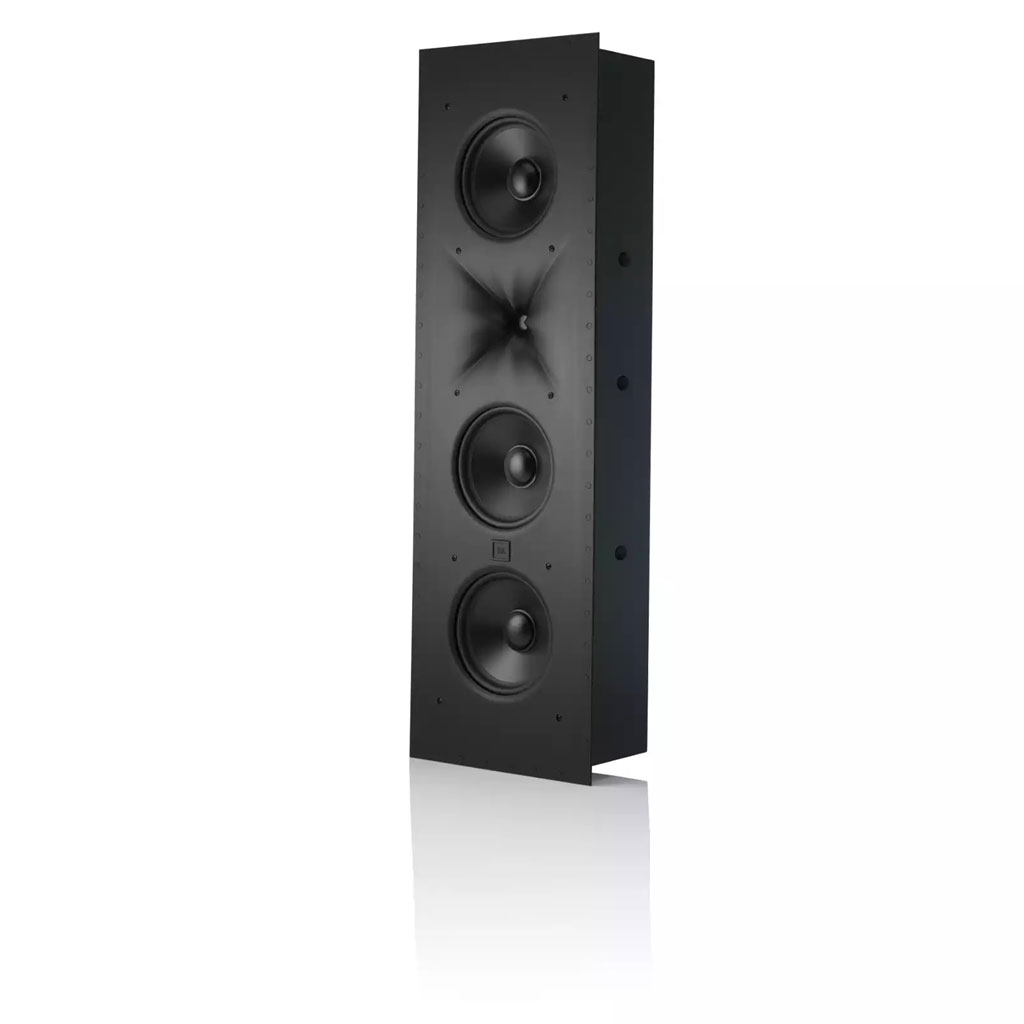

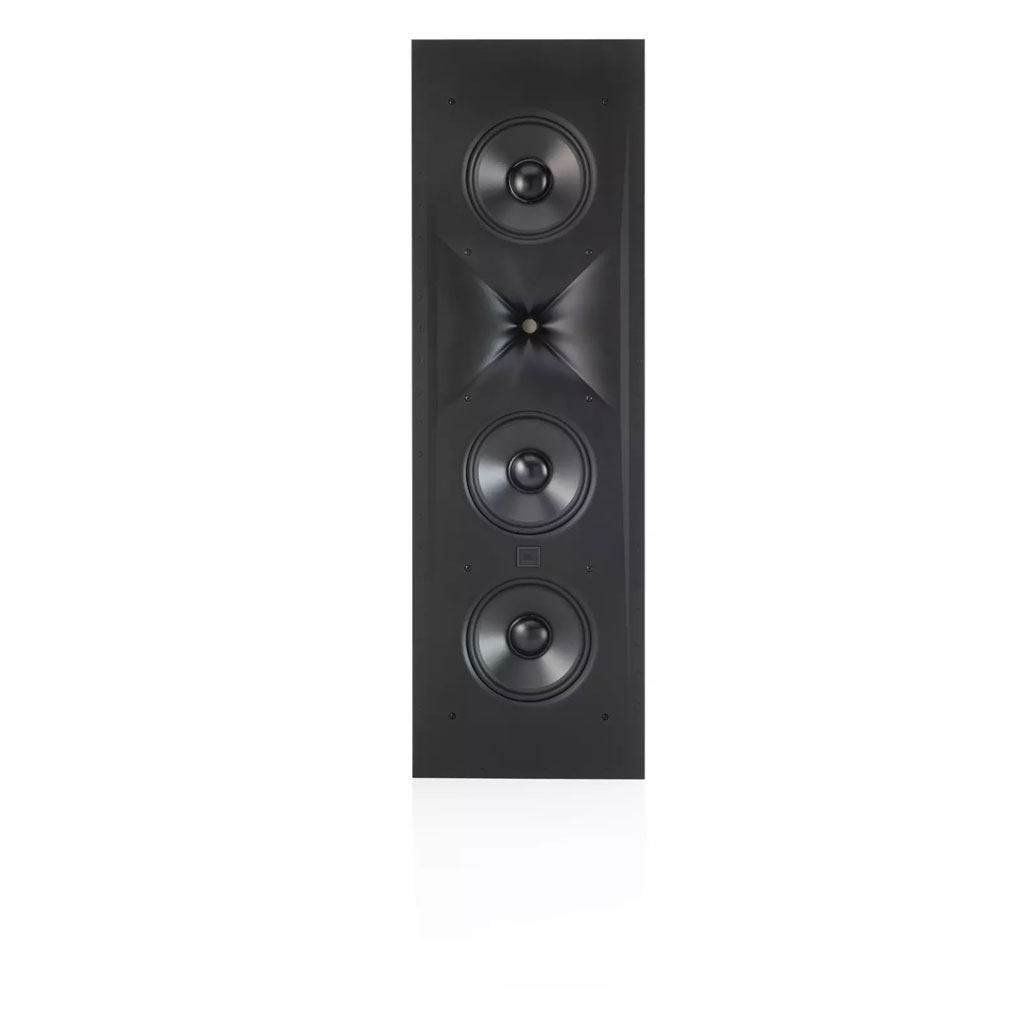

Part of the JBL Synthesis Custom Loudspeakers range, the SCL-2 offers the highest level of acoustic performance available from a flush-mount loudspeaker. The SCL-2 is designed with a 2.5-way, triple 8-inch (200mm) driver configuration for low-frequency extension with high output capability and powerful dynamics. A D2415K dual voice coil, dual 1.5-inch (38mm) annular ring diaphragm Teonex® compression driver with advanced HDI geometry horn works in conjunction with three powerful cast-frame, 8-inch (200mm) Advanced Aluminum Matrix cone woofers with low distortion motor structures.
The loudspeaker’s 5.8-inch (147mm)-deep enclosure fits standard wall construction applications and features a Sonoglass™ precision-molded baffle assembly with integrated HDI waveguide/horn, and a zero-bezel, magnetically-attached grille. The loudspeaker’s enclosure can be oriented with the horn closer to the top or bottom, or on its side for center channel or reduced height applications. SCL-2 systems can be mixed and matched with other SCL speakers or any JBL Synthesis loudspeakers.
Designed to provide ultimate performance and the highest levels of dynamics from any in-wall loudspeaker, the SCL-2 can discretely integrate into any environment and décor. They can also be installed in a traditional application behind acoustic fabric or woven/perforated video screens without installing the grilles. They feature a discrete matte black baffle, HDI waveguide, and transducers, with a paintable white grille. The SCL-2 is the perfect solution for in-wall LCR or surround channel applications as part of the JBL Synthesis home theater.
Features
-
2½-way, triple 8-inch/200mm driver configuration – ideal for wall mount
-
5.8-inch/147mm deep, rectangular footprint enclosure
-
Can be mounted vertically or horizontally for maximum application flexibility and performance
-
Computer-optimized HDI Constant Directivity Horn with very smooth and predictable off-axis behavior over a wide coverage area
-
D2415K, 1.5-inch/38mm annular ring Teonex® diaphragm compression driver with advanced HDI geometry horn
-
Powerful cast-frame, Advanced Aluminum Matrix cone woofers with low-distortion neodymium motor structures
-
Sonoglass® baffle with integrated HDI waveguide for maximum strength and high internal damping
-
Solid MDF enclosure installs behind drywall and provides optimized acoustic performance and enhanced acoustic isolation from the wall
-
Rubber isolation mounts attach the cabinet to wall studs, ensuring a firm yet isolated mounting
-

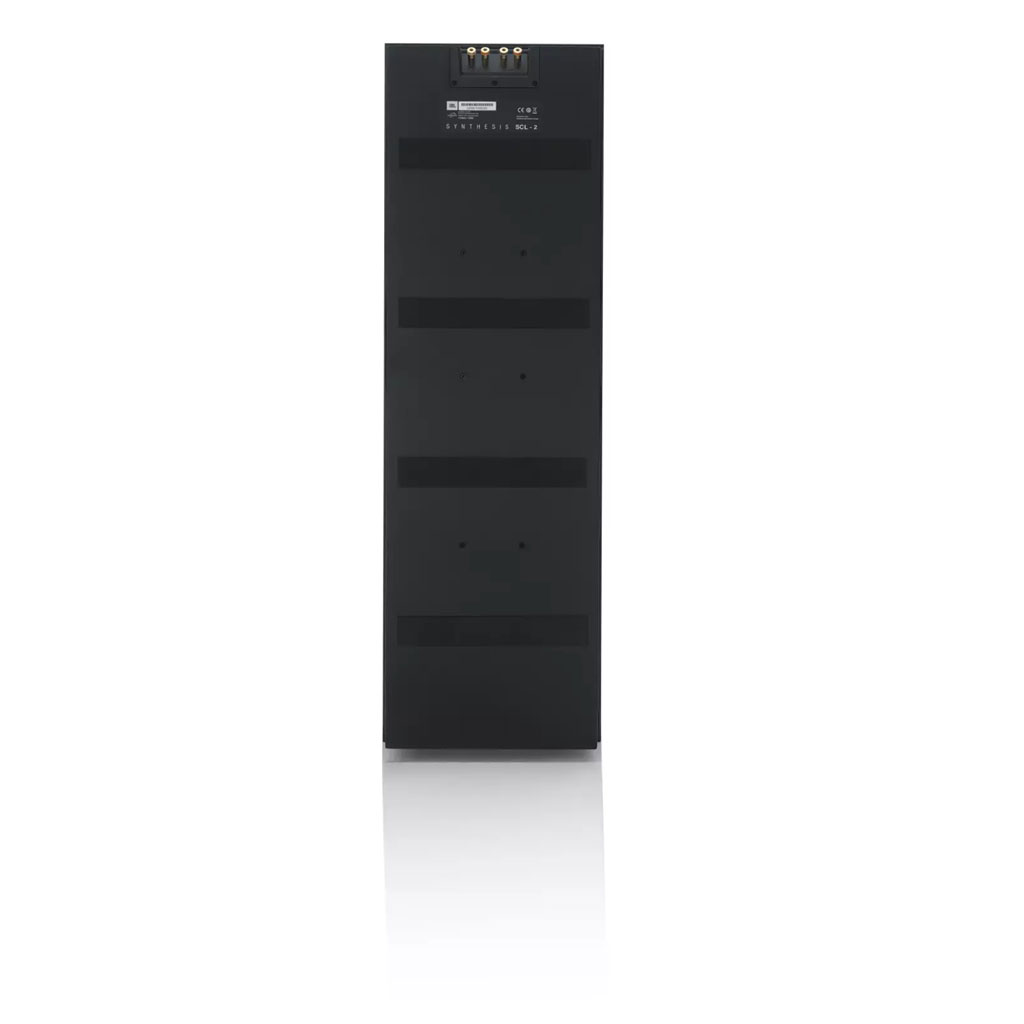

Bi-Wire and Bi-Amp capable network using gold-plated binding posts on the rear enclosure, and an easy Molex® baffle to network connection
-

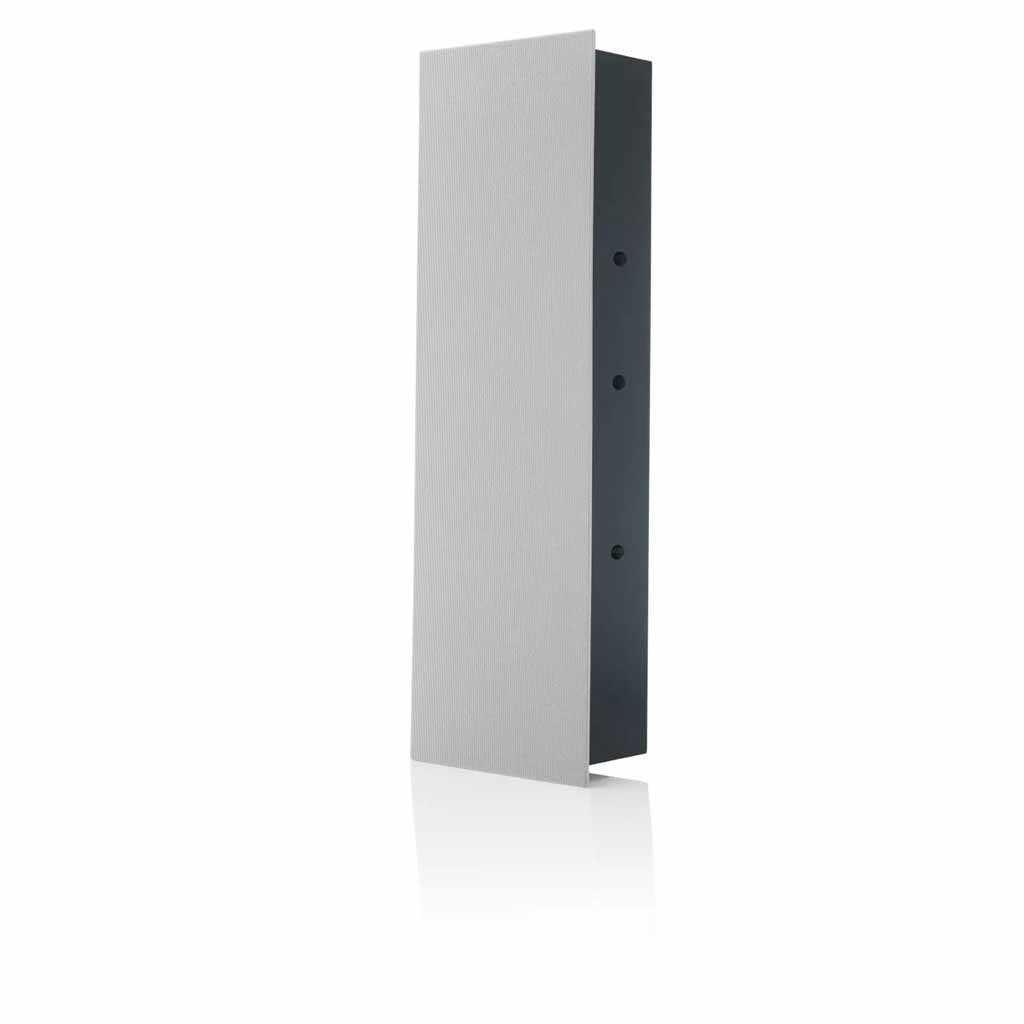

Zero-bezel, magnetically-attached grille can be painted to match décor
